The efficient movement of bulk materials—whether coal, grain, scrap, or aggregates—is a critical driver of productivity in industries ranging from mining and recycling to ports and agriculture. At the heart of this operation lies a specialized workhorse: the QZ Grab Overhead Crane. More than just a crane, this integrated system represents the optimal fusion of robust overhead lifting technology with the versatile, self-contained grabbing mechanism designed for rapid, high-volume material transfer.This comprehensive guide delves into the engineering, applications, and selection criteria for the QZ Grab Overhead Crane, providing essential insights for facility managers, plant engineers, and procurement specialists.
1. What is a QZ Grab Overhead Crane?

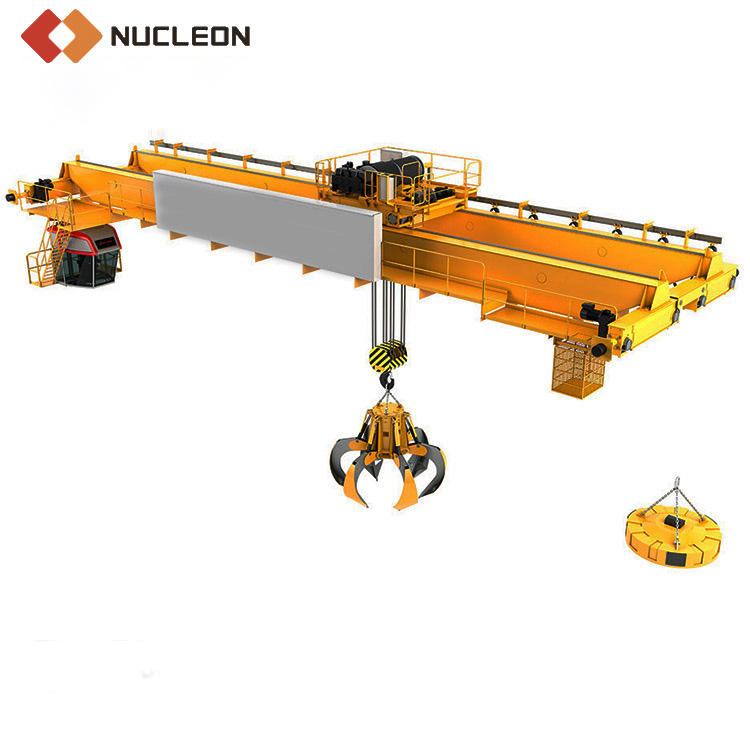

A QZ Grab Overhead Crane is a type of overhead traveling crane (also known as a bridge crane) equipped with a Four-Rope Grab (often referred to as a "QZ" or "Shell Grab" in industry terminology). Unlike a standard hook crane, this system is purpose-built for grabbing, lifting, transporting, and releasing loose bulk materials without manual intervention or additional equipment.
The system consists of two main components:
The Overhead Crane Structure: Includes the bridge girders, end trucks, hoisting mechanism, and controls that traverse the length and width of a bay or building.
The Four-Rope Grab Bucket: A motorized or hydraulic grab suspended from the crane's hoist. It is operated via separate closing and holding ropes (hence "four-rope") that allow it to open, close, grip material, and lift with precision.
2. Core Working Principle & Advantages
The QZ system's intelligence lies in its dual-motor, dual-rope control on the crane and the synchronized grab mechanism.
How It Operates:
Positioning: The crane positions the open grab over the material pile.
Closing: The "closing" motor on the crane winds in the closing rope, forcing the grab jaws to dig into and close around the material.
Lifting: Once closed and full, the main "hoisting" motor engages, lifting the loaded grab via the holding ropes.
Transport & Dumping: The crane travels to the discharge point, lowers the grab, and the closing motor reverses to open the jaws, releasing the material.
Key Advantages Over Alternatives:
High Efficiency: Dramatically faster cycle times compared to manual loading or excavators.
Full Automation Potential: Easily integrated into semi- or fully-automated handling systems with programmable logic controllers (PLCs).
Superior Yard/Bay Coverage: Utilizes the full 3D space of a facility, leaving the floor clear for other activities.
Reduced Labor & Cost: Minimizes manpower needs and associated risks while lowering cost per ton handled.
Material Versatility: By simply changing the grab bucket design (clamshell, orange peel, timber, etc.), the same crane can handle diverse materials.
3. Technical Specifications & Design Variations
Selecting the right QZ Grab Crane requires careful consideration of several parameters:
Lifting Capacity (Tonnage): Ranges from 5 tons for light scrap to 50+ tons for heavy ore. Must account for the weight of the grab plus the bulk density of the material.
Span & Lift Height: Determined by the building or gantry's width and the required stacking or dumping height.
Duty Class (FEM/ISO): Classification (e.g., A3, A4, A5) defines the crane's intended usage intensity and influences component design.
Grab Bucket Type & Capacity:
Clamshell Grab: Universal choice for sand, gravel, grain, coal.
Orange Peel Grab: Ideal for scrap metal, rock, demolition waste.
Timber Grab: Designed for logs and lumber.
Electro-Hydraulic Grab: Offers higher gripping force and independent jaw control for difficult, compacted materials.
Control Systems: Options include pendant/cab control, radio remote control, or complete automation with position-sensing and auto-cycle programs.
4. Primary Industrial Applications
The QZ Grab Overhead Crane is indispensable in sectors defined by bulk material logistics:
Scrap Metal Recycling Yards: For sorting, feeding shredders, and loading/unloading.
Power Plants: Handling coal and biomass fuel.
Ports & Terminals: Transferring bulk cargo (grain, fertilizers) between ships, barges, and stockpiles.
Steel Mills: Charging raw materials (iron ore, limestone) into furnaces.
Aggregate Processing: Moving sand, gravel, and crushed stone.
Waste-to-Energy Facilities: Processing municipal solid waste (MSW).
Agriculture & Grain Silos: Managing harvests and feed stocks.
5. Critical Selection & Safety Considerations
Choosing the Right System:
Material Analysis: Define material density, abrasiveness, lump size, and angle of repose.
Throughput Requirements: Calculate required tons/hour to determine optimal crane speed and grab capacity.
Environmental Factors: Consider indoor/outdoor use, corrosion (saltwater, chemicals), and dust/explosive atmosphere certifications (ATEX).
Future-Proofing: Consider modular designs that allow for capacity or span upgrades.
Safety & Maintenance Imperatives:
Regular Inspections: Mandatory checks of wire ropes, grab jaws, electrical systems, and structural integrity.
Operator Training: Specialized training for grab operation to prevent swing, spillage, and overload.
Safety Devices: Ensure inclusion of overload limiters, anti-collision systems, emergency stops, and end limit switches.
Preventive Maintenance: Scheduled lubrication and component replacement based on duty cycles.
6. The Future: Smart QZ Grab Cranes
The next evolution integrates IIoT (Industrial Internet of Things) and AI:
Predictive Maintenance: Sensors monitor motor temperature, rope integrity, and mechanical stress.
Optimized Cycle Automation: AI algorithms calculate the most efficient grab point and travel path.
Load & Inventory Management: Automated weighing systems and 3D stockpile profiling.
Conclusion: An Engineered Solution for Bulk Handling Challenges
The QZ Grab Overhead Crane is not merely a piece of equipment but a strategic material handling solution. It delivers unmatched efficiency, safety, and versatility in environments where moving large volumes of loose material defines operational success. Investing in a correctly specified and well-maintained system pays continuous dividends in productivity and cost savings.
By understanding its principles, applications, and selection criteria outlined in this guide, you are equipped to make an informed decision that will optimize your material flow for years to come.
